Parts for Wooden frame GEAR
Wooden frame
角度调节配
回转配件
其他功能配件
IS （International Standard Gears）
  PDF
IS GEAR
 图面

  • Gear movement　（6 degrees per pitch）
    • IS-5-132
    IS-5-222
    IS-5-90
    IS-5-180
    IS-8-132
    IS-8-222
    IS-8-72
    IS-8-162
    IS-9-108
    IS-9-198
    IS-9-90
    IS-9-180
    IS-15-72
    IS-15-162
    IS-15-90
    IS-15-180
    IS-12-90
    IS-12-180
    "IS" Gear is the one that can fit into the wood frame e.t.c very well inside the chair and/or sofa.
  • IS Gear　movement image

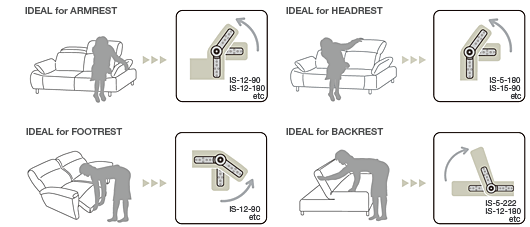

    • APPLICATION
    Angle riveted type & long arm type are available with the same steps & motion patterns of the standard.
    PDF

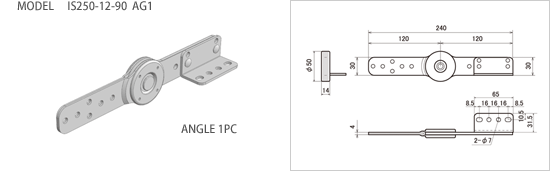

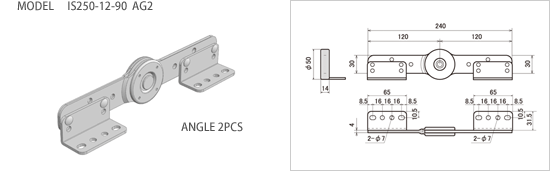

    ANGLE RIVETED TYPE

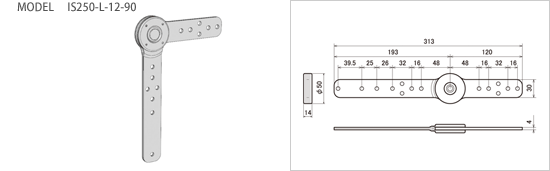

    LONG ARM TYPE
